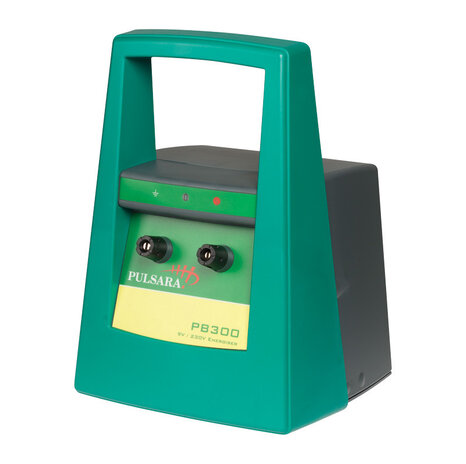

PB300 Battery Energiser/Charger - 9V/230V

Specifications - Pulsara PB300 Mains Energiser

Pulsara PB300 is a 9 Volt battery energiser, ideal for professional and hobby use. The robust design makes the energiser low maintenance and protects the battery against all elements. If you need an energiser for 3 km of fencing, the PB300 is your solution.

• 9V Battery energiser, suitable for mulitwire fences up to 3 km
• LED indicators show status of the energiser, easy to operate
• Built-in lightning protection
• Charging energy: 0,47 Joule
• Maximum impulse output energy: 0,3 Joule
• Maximum output voltage: 7.500 Volt
• Maximum fence length: 3.000 metres

Fence length - Pulsara PB300 Mains Energiser

Pulsara's PB series consists out of three 9 Volt energisers. The PB300 is the strongest of the three. The energisers are developed to keep animals safely inside in the most animal-friendly and safe manner. The PB energisers stand out because of its robust form and well-designed ergonomics. The handle on the PB300 makes it easy to move. The battery is placed in the energiser under a hood, which means it is always protected against the elements.

The maximum length of the fence supported by the PB300 is determined by different variables. The variable most important in indicating the maximum length of the fence is the maximum output voltage. The maximum output voltage of the PB300 is 7.500 Volt, which is suitable for fences up to 3.000 metres.

The recommended length of the fence is being influenced by the used conductors. For the best performance of your Pulsara PB300 mains energiser we recommend to use high quality conductors. The quality of the conductor determines the level of resistance on the wire. The higher the resistance, the lower the maximum length of the fence.

Animals - Pulsara PB300 Mains Energiser

Due to the maximum impulse energy of the PB300 we recommend  the energiser for fences for horses, cattle, sheep and pigs. The maximum impulse energy displays the intensity of the impulse which an animal gets when touching the fence. The higher the impulse energy, the more intense the impulse.

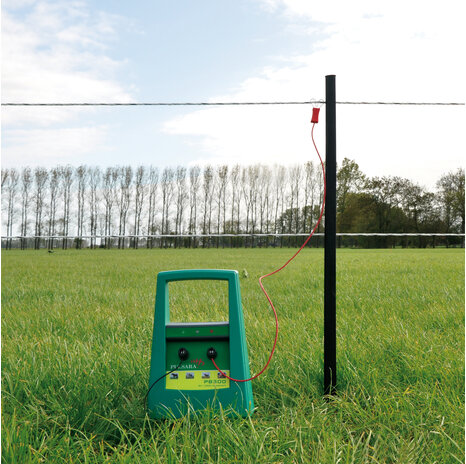

Installation - Pulsara PB300 Mains Energiser

For installation of the installation of the PB300 Pulsara mains energiser we recommend a 1 metre earth rods. There is no special combination of earth rods recommended, as long the total length of earth rods is 1 metre. In general the rule of thumb for earthing the energisers is 1 metre per output joule. As the PB300 Pulsara energiser has a maximum output joule 0.3, the recommended earthing is 1 metre. Choosing for less earthing could impact the performance of the energiser, having more does not impact the performance.

The PB300 can be used as a mains energiser as well as mobile battery energiser. For using the fence charger as a mains energiser, you should have a mains adapter(art. nr.: 058709), which is not included.

When using the PB300 as a battery energiser, we recommend you to use 9V batteries 55Ah to 160Ah.

Recommended batteries 9V of 55Ah to 160Ah.
